PT200UW Pan-Tilt Arm in a test tank



Pan-Tilt Arm controls on the scanner console
Control consoles for the M210UW and M310UW underwater laser scanners are fitted with directional and speed controls for the Pan-Tilt Arm on the front panel.



Casing of the Pan-Tilt Arm
Pan-Tilt Arm casings and covers are machined from solid billets of 6061-T6 aluminum stock.
Newton Labs

For information on Newton Labs underwater laser scanner products, please contact:
lasersales@newtonlabs.com

Newton Labs

To view or download a two-page
Pan-Tilt data sheet, CLICK HERE.

Pan-Tilt Arm for Precisely Positioning Underwater Laser Scanners by Newton Labs

A Steady Platform with Precise Positioning

The Pan-Tilt Arm, developed and manufactured by Newton Labs, enables precise and rapid positioning of underwater laser scanner models in order to capture dimensional measurements from multiple angles of a submerged target. The Pan-Tilt Arm is specifically designed to mount the family of Newton laser scanners: the NM200UW Nuclear Underwater Scanner, the M210UW Underwater Scanner and the M310UW Extended Range Scanner.

The Pan-Tilt Arm offers greater control in tighter locations. The flexible unit features an operation range of 185 degrees at the "elbow" and infinite rotation at the "wrist." All control signals and power for both the Pan-Tilt Arm and the scanner are conveyed through a single cable.

No Cable to Snag

A major feature of the Pan-Tilt Arm is that it offers complete freedom of movement because all cables are internal. Signals to and from the scanner head pass through the "wrist" and "elbow" and the single, combined control/power cable emerges from a port in the pole attachment, terminating with a Seacon Mini-con dry mate connector.
The Pan-Tilt Arm can position a any of the scanner models into restrictive underwater spaces without the concern of cable snags.

Construction:

The Pan-Tilt Arm is constructed of rugged, industrial-grade hardware and electronics and is specifically designed to tolerate the turbulence, heat and radioactivity characteristic of the in-vessel environment.

Deployment:

The Pan-Tilt Arm can be used to deploy a Newton scanner by a variety of methods: pole mounting, an ROV, or other robots.

Safety Features:

Two safety features are incorporated into the design:

  • The "elbow" joint is fitted with a slip-clutch as an emergency removal provision in the event of power loss with the arm rotated. Applying approximately five pounds of force will allow the unpowered arm to rotate for extraction
  • Both axis motors are encoded with a stall-detection feature, so that if either, or both, are stalled during rotation, they will instantly shut down.

Control:

Two-axis directional control of the Pan-Tilt Arm is achieved with a joystick that is installed on the front panel of the scanner control console. Pan and tilt speed is controlled with an adjacent rheostat knob.





Newton Labs
Technical Specifications
Elements
System Performance
Details
System Performance
Length (main body) 16.9 in. (429 mm)
Length (pole attachment) 11.9 in. (303 mm)
Width 5.25 in. (133 mm)
Height 4.0 in. (102 mm)
Weight (in air) 16.5 lbs. (7.5 kg)
Weight (in water) 5.0 lbs (2.27 kg)
Cable LLDPE polyurethane jacket, gel filled
Construction Machined from solid billet of 6061-T6 aluminum stock
Fittings & retainers 300 series stainless steel
Mounting attachments To pole or robot: Ten, #8-32 threaded alternate mounting holes on “elbow” end
-----------
To scanner: Two auto-aligning clamps engaged via a 3/16 in. Allen wrench
Standard operating temperature 110° F (43.3° C ) in water
Storage temperature 0° to 160° F (- 18° to 71° C)
Power input voltage/current 2 amps, powered by scanner control unit
Range of operation - “elbow” 185 degrees
Range of operation - “wrist” Infinite rotation
Pan-tilt & rotation control Via joystick and speed control rheostat on scanner control unit
Watertight depth rating 320 ft. (100 m)



Newton Labs

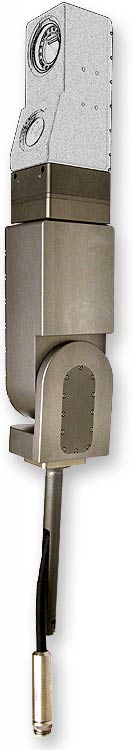

Pan-Tilt Arm

The Pan-Tilt Arm is designed to mount all models in the family of Newton laser scanners.
